DUAL STACKED THROUGH HOLE MOUNT PULSE TRANSFORMERS
Features:
- High Reliability
- Qualified for use in MIL-STD-1553B applications
- Dual ratio in single package
- 45dB Common Mode Rejection
- Low cost
- All Standard Voltages & Turns Ratios
- Fast Delivery
Applicable documents:
- MIL-STD-1553B
- MIL-STD-202
- MIL-T-21038D
Specifications:
| Input Impedance |
See Table |
| Droop |
≤20% |
| Overshoot |
± 1V max |
| Common Mode Rejection (CMR) |
45dB min |
| Frequency rage (No Load) |
75KHz to 1MHz |
| Insulation Resistance (Minimum) |
1000MΩ @250Vdc |
| Dielectric withstanding voltage |
200Vrms |
| DC Resistance |
See Table |
| Operating Temperature |
-55 to +125°C |
| Weight |
≤6grams |

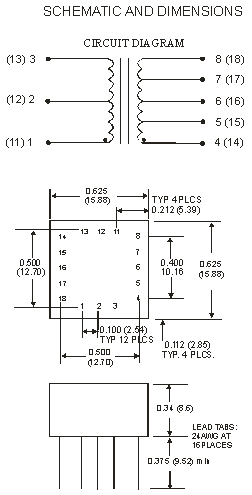

Specifications Table:
| MODEL No. |
TURNS RATIO(±3%) |
TERMINALS |
RDC (ohms) Max. |
IMPEDANCE (ohms) Min. |
|
CP 1553-01T/
CP 1553-01TL |
1:1
1:0.707 |
1-3(11-13):4-8(14-18)
1-3(11-3):5-7(15-17) |
1-3(11-13)
4-8(14-18) |
3.0
3-0 |
(1-3) (11-13) 4,000 |
| CP 1553-03T |
1.25:1
1.66:1 |
1-3(11-3):4-8(14-18)
1-3(11-13):5-7(15-17) |
1-3(11-13)
4-8(14-18) |
3.0
3.0 |
(1-3) (11-13) 4,000 |
| CP 1553-05T |
2.12:1
1.5:1 |
4-8(14-18):1-3(11-13)
5-7(15-17):1-3(11-13) |
1-3(11-13)
4-8(14-18) |
2.0
3.5 |
(4-8) (14-18) 4,000 |
| CP 1553-45T |
2.5:1
1.79:1 |
4-8(14-18):1-3(11-3)
5-7(15-17):1-3(11-3) |
1-3(11-13)
4-8(14-18) |
1.5
3.5 |
(4-8) (14-18) 4,000 |
|
|
)
